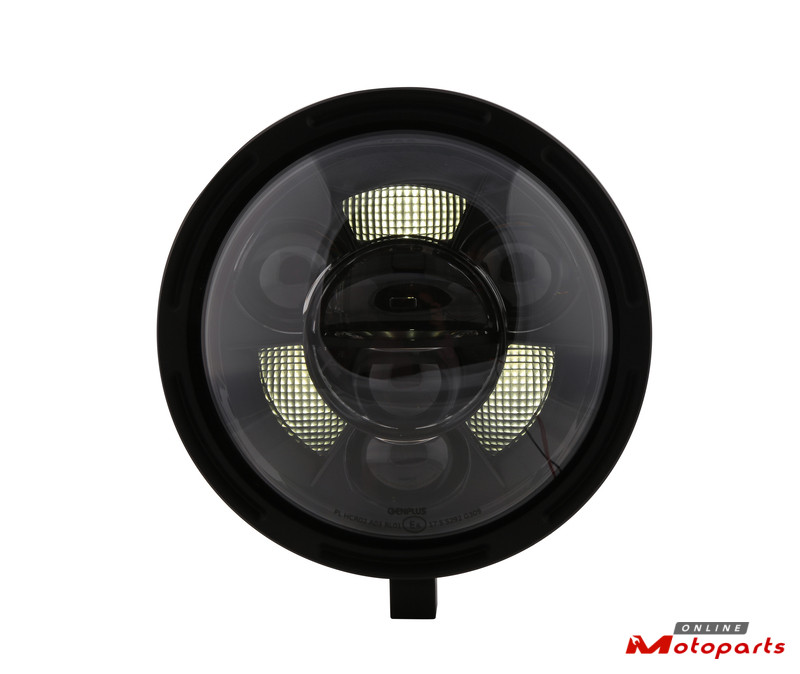

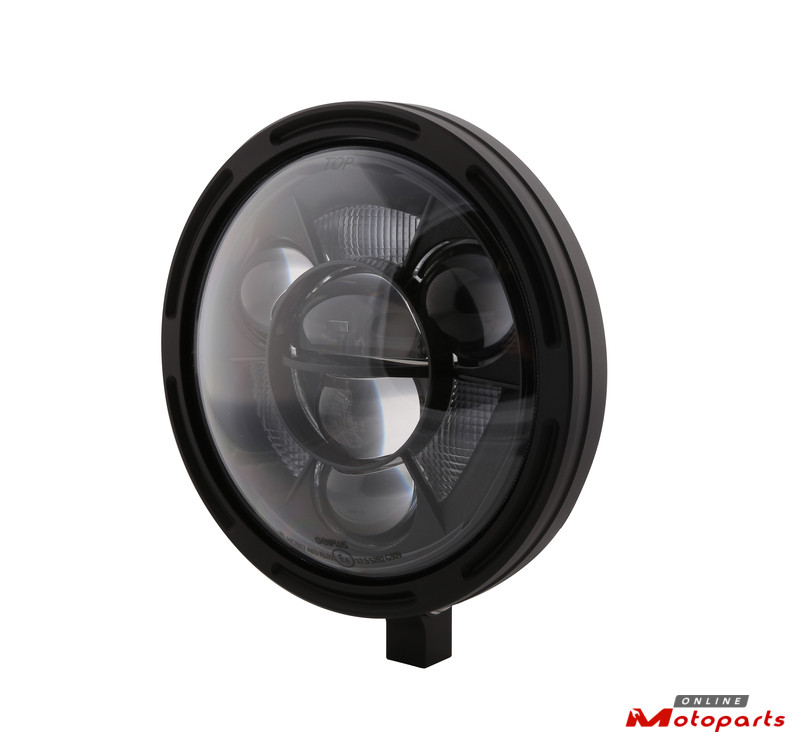

HIGHSIDER pro FRAME-R1 TYPE 11 LED main headlight 7 inch, E-approved
- Mounting WITHOUT housing, a light comes on. -

Every centimeter counts to place the headlight as close as possible between the two stanchions in the fork.

REDUCED TO THE MAX was the premise behind the development of the innovative FRAME headlight mount.

The purist aluminum ring makes it possible for the first time to mount various LED headlight inserts free-standing on the motorcycle. By deliberately dispensing with a headlight housing, an unbeatably narrow installation position is made possible and better cooling of the LED unit is also achieved.

On many motorcycles, the H4 or H7 lamp lights up, more or less twinkling away. Seeing better usually also means being seen better, which is not unimportant as summer turns to fall and in times when cars are increasingly equipped with bright daytime running lights.

Whether as a replacement for better visibility at night, better visibility during the day or to give your motorcycle a more attractive appearance, if you are looking for a stylish and innovative power headlight, then the FRAME-R1 LED main headlight is an excellent choice. The built-in LED daytime running light in the TYPE 11 is the perfect way to improve visibility during the day. The ellipsoid lenses in combination with powerful LEDs turn night into day and thus combine a strong plus in safety with a polarizing, unique look.

Two different mounting systems are available for variable mounting of the headlamp.
- Side mount, the conventional screw connection on the side of the lamp holder

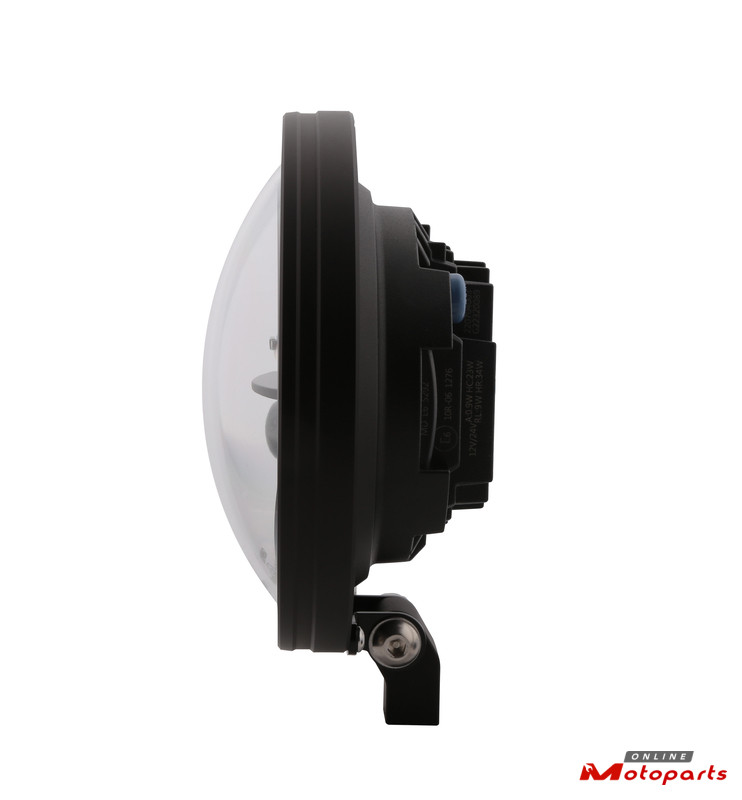

- Bottom mount, attachment at the bottom for bolting to the fork bridge

The side-mount holders can be mounted in three positions, compensating for 32 mm in installation depth and 46 mm in width.

Features:
• Round 7 inch headlight with CNC mounting ring and mounting kit
• Mounting WITHOUT a headlight housing
• Improves cooling
• Many installation options
• Flat installation
• Modern look, stylish and innovative
• Clear glass
• Black reflector
• The reflector emits an asymmetrical luminous flux that is only approved for right-hand traffic
• High beam, low beam, parking light and daytime running light function
• E-approved, nothing needs to be registered

Give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER pro headlight series will definitely turn your bike into a highlight!

Dimensions:
A diameter = 170 mm
GA diameter = 165 mm
I diameter = 160 mm
T = 60 mm
R = 9 mm
Total depth from glass to cooling fins: 99.10 mm

Connections 3 pin plug:
Black cable = earth (-)
White cable = low beam (+)
Blue cable = high beam (+)

DRL:
Black cable = earth (-)
Brown cable = daytime running light (+)
Gray cable = parking light (+)

Scope of delivery: 1 piece
