RFX PRO THROTTLE TUBE, BLK FXTT5020099BK
RFX Pro Throttle Tube (Black)| Product | RFX PRO THROTTLE TUBE, BLK |
| Merk | Rfx |
| Categoy | Acc. design parts |
| Voorraadnummer | 54308 (1110939001) |
| Prijs | € 45,36 |
| Voorraad | 35 |
Toevoegen aan winkelmand

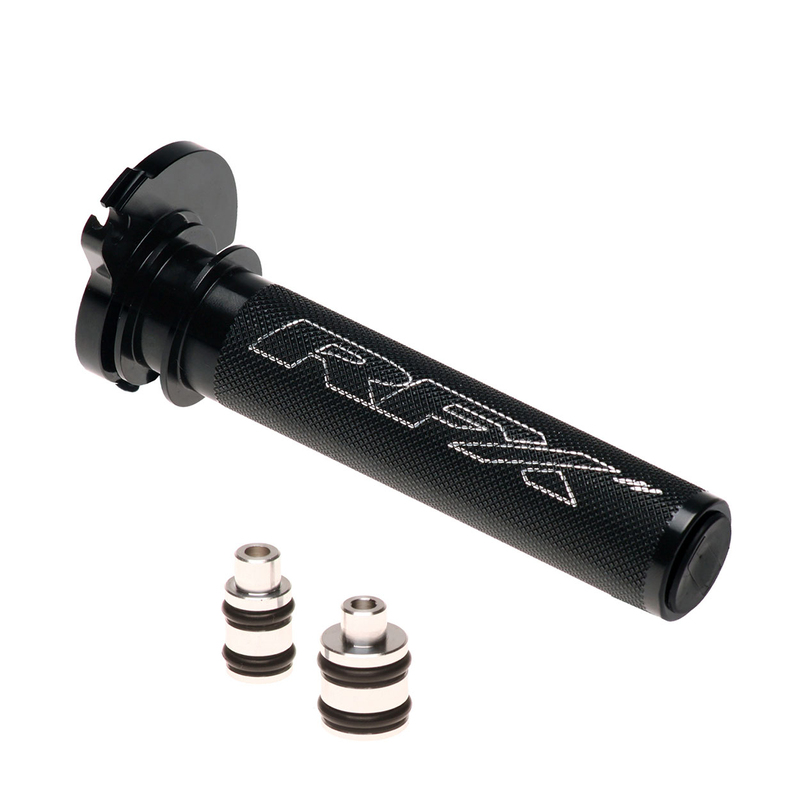

RFX Pro Throttle Tube (Black) KTM SX/EXC 85-300 00-16 Husqvarna TC/TE 14-16
New 2016 model now includes Two Optional Inserts, which ensure you can fit the throttle tube to the following bars.
RFX F7/F8
Renthal Twinwall
Renthal Fatbar, Pro Taper, Magura, Neken.
RFX Pro Series Throttle Tubes are machined from billet aluminium and feature a sealed bearing and Teflon sleeve to provide an effortless throttle action. RFX Pro Series Tubes resist damage in a crash unlike standard plastic tubes. For these reasons they are used by many of the top race teams and riders in the U.K Championships such as STR KTM.
- Replacement throttle tubes for all popular off road bikes.
- Uses the same cam profile as the OEM part for proper throttle control.
- Hard anodised billet aluminium construction.
- Sealed ball bearing and Teflon sleeve virtually eliminate friction.
- Laser etched with RFX logo.
- Knurled grip mounted area.
- Reduced chance of damage if you crash.
Fitting Instructions
- Slide the rubber boot down and disassemble the throttle housing, remove the old throttle tube taking care not to damage the throttle cables.
- Carefully remove grip from the old throttle tube if required.
- Inspect the cables and housing for excess damage or wear, clean and lube them or replace if required.
- Clean the handlebar and inspect for damage where the old throttle tube has been spinning on the bar if a ridge is present replace the handlebars.
- Slide the new throttle tube on the handlebar and lube using a penetrating lubricant preferably Maxima MPPL (do not use grease as this attracts dirt and makes the throttle stick after a short period of time).
- Re-assemble the throttle cables and housing again using some penetrating lubricant.
- Tighten the throttle housing in the correct position on the handlebars.
- Adjust the cable to the required (free play amount) of your liking.
- Rotate the handlebars to their maximum position to check proper operation of the throttle and correct cable routing, some re-adjustment of the cable may be required.
- Slide the rubber boot back over the housing.
- Cover the hole in the end of the grip with some electrical tape (To stop glue entering the throttle barrel) and apply a small amount of RFX grip glue to the outer end of the throttle tube on the outside diameter.
- Apply a small amount of RFX grip glue to the inside of the new grip and slide onto the tube.
- Twist the grip to the correct position and leave to dry.
- Apply RFX safety grip wire if needed.
- After the glue has dried again check proper operation of the throttle.
Part compatible with
Ktm - 85 SX STD WHEELS 17/14 (2003)Ktm - 85 SX STD WHEELS 17/14 (2004)
Ktm - 85 SX STD WHEELS 17/14 (2005)
Ktm - 85 SX STD WHEELS 17/14 (2006)
Ktm - 85 SX STD WHEELS 17/14 (2007)
Ktm - 85 SX STD WHEELS 17/14 (2008)
Ktm - 85 SX STD WHEELS 17/14 (2009)
Ktm - 85 SX STD WHEELS 17/14 (2010)
Ktm - 85 SX STD WHEELS 17/14 (2011)
Ktm - 85 SX STD WHEELS 17/14 (2012)
Ktm - 85 SX STD WHEELS 17/14 (2013)
Ktm - 85 SX STD WHEELS 17/14 (2014)
Ktm - 85 SX STD WHEELS 17/14 (2015)
Ktm - 85 SX STD WHEELS 17/14 (2016)
Ktm - 85 SX STD WHEELS 17/14 (2017)
Ktm - 85 SX BIG WHEELS 19/16 (2004)
Ktm - 85 SX BIG WHEELS 19/16 (2005)
Ktm - 85 SX BIG WHEELS 19/16 (2006)
Ktm - 85 SX BIG WHEELS 19/16 (2007)
Ktm - 85 SX BIG WHEELS 19/16 (2008)
Ktm - 85 SX BIG WHEELS 19/16 (2009)
Ktm - 85 SX BIG WHEELS 19/16 (2010)
Ktm - 85 SX BIG WHEELS 19/16 (2011)
Ktm - 85 SX BIG WHEELS 19/16 (2012)
Ktm - 85 SX BIG WHEELS 19/16 (2013)
Ktm - 85 SX BIG WHEELS 19/16 (2014)
Ktm - 85 SX BIG WHEELS 19/16 (2015)
Ktm - 85 SX BIG WHEELS 19/16 (2016)
Ktm - 85 SX BIG WHEELS 19/16 (2017)
Ktm - 125 SX (1998)
Ktm - 125 SX (1999)
Ktm - 125 SX (2000)
Ktm - 125 SX (2001)
Ktm - 125 SX (2002)
Ktm - 125 SX (2003)
Ktm - 125 SX (2004)
Ktm - 125 SX (2005)
Ktm - 125 SX (2006)
Ktm - 125 SX (2007)
Ktm - 125 SX (2008)
Ktm - 125 SX (2009)
Ktm - 125 SX (2010)
Ktm - 125 SX (2011)
Ktm - 125 SX (2012)
Ktm - 125 SX (2013)
Ktm - 125 SX (2014)
Ktm - 125 SX (2015)
Ktm - 125 SX (2016)
Ktm - 125 SX FACTORY EDITION TYLA RATTRAY (2005)
Ktm - 125 EXC (1998)
Ktm - 125 EXC (1999)
Ktm - 125 EXC (2000)
Ktm - 125 EXC (2001)
Ktm - 125 EXC (2002)
Ktm - 125 EXC (2003)
Ktm - 125 EXC (2004)
Ktm - 125 EXC (2005)
Ktm - 125 EXC (2006)
Ktm - 125 EXC (2007)
Ktm - 125 EXC (2008)
Ktm - 125 EXC (2009)
Ktm - 125 EXC (2010)
Ktm - 125 EXC (2011)
Ktm - 125 EXC (2012)
Ktm - 125 EXC (2013)
Ktm - 125 EXC (2014)
Ktm - 125 EXC (2015)
Ktm - 125 EXC (2016)
Ktm - 125 EXC SIX DAYS (1998)
Ktm - 125 EXC SIX DAYS (1999)
Ktm - 125 EXC SIX DAYS (2000)
Ktm - 125 EXC SIX DAYS (2001)
Ktm - 125 EXC SIX DAYS (2002)
Ktm - 125 EXC SIX DAYS (2003)
Ktm - 125 EXC SIX DAYS (2004)
Ktm - 125 EXC SIX DAYS (2005)
Ktm - 125 EXC SIX DAYS (2006)
Ktm - 125 EXC SIX DAYS (2007)
Ktm - 125 EXC SIX DAYS (2008)
Ktm - 125 EXC SIX DAYS (2009)
Ktm - 125 EXC SIX DAYS (2010)
Ktm - 125 EXC SIX DAYS (2011)
Ktm - 125 EXC SIX DAYS (2012)
Ktm - 125 EXC SIX DAYS (2013)
Ktm - 125 EXC SIX DAYS (2014)
Ktm - 125 EXC SIX DAYS (2015)
Ktm - 125 EXC SIX DAYS (2016)
Ktm - 125 EXC FACTORY EDITION (2011)
Ktm - 125 EXC FACTORY EDITION (2010)
Ktm - 125 EXC FACTORY EDITION (2015)
Ktm - 144 SX (2007)
Ktm - 144 SX (2008)
Ktm - 150 SX (2011)
Ktm - 150 SX (2012)
Ktm - 150 SX (2013)
Ktm - 150 SX (2014)
Ktm - 150 SX (2015)
Ktm - 150 SX (2016)
Ktm - 150 SX (2008)
Ktm - 150 SX (2009)
Ktm - 150 SX (2010)
Ktm - 200 SX (2003)
Ktm - 200 SX (2004)
Ktm - 200 EXC (1998)
Ktm - 200 EXC (1999)
Ktm - 200 EXC (2000)
Ktm - 200 EXC (2001)
Ktm - 200 EXC (2002)
Ktm - 200 EXC (2003)
Ktm - 200 EXC (2004)
Ktm - 200 EXC (2005)
Ktm - 200 EXC (2006)
Ktm - 200 EXC (2007)
Ktm - 200 EXC (2008)
Ktm - 200 EXC (2009)
Ktm - 200 EXC (2010)
Ktm - 200 EXC (2011)
Ktm - 200 EXC (2012)
Ktm - 200 EXC (2013)
Ktm - 200 EXC (2014)
Ktm - 200 EXC (2015)
Ktm - 200 EXC (2016)
Ktm - 250 EXC (1998)
Ktm - 250 EXC (1999)
Ktm - 250 EXC (2000)
Ktm - 250 EXC (2001)
Ktm - 250 EXC (2002)
Ktm - 250 EXC (2003)
Ktm - 250 EXC (2004)
Ktm - 250 EXC (2005)
Ktm - 250 EXC (2006)
Ktm - 250 EXC (2007)
Ktm - 250 EXC (2008)
Ktm - 250 EXC (2009)
Ktm - 250 EXC (2010)
Ktm - 250 EXC (2012)
Ktm - 250 EXC (2011)
Ktm - 250 EXC (2013)
Ktm - 250 EXC (2014)
Ktm - 250 EXC (2015)
Ktm - 250 EXC (2016)
Ktm - 250 EXC SIX DAYS (2001)
Ktm - 250 EXC SIX DAYS (2002)
Ktm - 250 EXC SIX DAYS (2003)
Ktm - 250 EXC SIX DAYS (2004)
Ktm - 250 EXC SIX DAYS (2005)
Ktm - 250 EXC SIX DAYS (2006)
Ktm - 250 EXC SIX DAYS (2007)
Ktm - 250 EXC SIX DAYS (2008)
Ktm - 250 EXC SIX DAYS (2009)
Ktm - 250 EXC SIX DAYS (2010)
Ktm - 250 EXC SIX DAYS (2011)
Ktm - 250 EXC SIX DAYS (2012)
Ktm - 250 EXC SIX DAYS (2013)
Ktm - 250 EXC SIX DAYS (2014)
Ktm - 250 EXC SIX DAYS (2015)
Ktm - 250 EXC SIX DAYS (2016)
Ktm - 250 EXC FACTORY EDITION (2011)
Ktm - 250 EXC FACTORY EDITION (2015)
Ktm - 250 EXC E-STARTER (2010)
Ktm - 250 SX (1998)
Ktm - 250 SX (1999)
Ktm - 250 SX (2000)
Ktm - 250 SX (2001)
Ktm - 250 SX (2002)
Ktm - 250 SX (2003)
Ktm - 250 SX (2004)
Ktm - 250 SX (2005)
Ktm - 250 SX (2006)
Ktm - 250 SX (2007)
Ktm - 250 SX (2008)
Ktm - 250 SX (2009)
Ktm - 250 SX (2010)
Ktm - 250 SX (2011)
Ktm - 250 SX (2012)
Ktm - 250 SX (2013)
Ktm - 250 SX (2014)
Ktm - 250 SX (2015)
Ktm - 250 SX (2016)
Ktm - 300 EXC (1998)
Ktm - 300 EXC (1999)
Ktm - 300 EXC (2000)
Ktm - 300 EXC (2001)
Ktm - 300 EXC (2002)
Ktm - 300 EXC (2003)
Ktm - 300 EXC (2004)
Ktm - 300 EXC (2005)
Ktm - 300 EXC (2006)
Ktm - 300 EXC (2007)
Ktm - 300 EXC (2008)
Ktm - 300 EXC (2009)
Ktm - 300 EXC (2011)
Ktm - 300 EXC (2010)
Ktm - 300 EXC (2012)
Ktm - 300 EXC (2013)
Ktm - 300 EXC (2014)
Ktm - 300 EXC (2015)
Ktm - 300 EXC (2016)
Ktm - 300 EXC FACTORY EDITION (2011)
Ktm - 300 EXC FACTORY EDITION (2015)
Ktm - 300 EXC SIX DAYS (2001)
Ktm - 300 EXC SIX DAYS (2002)
Ktm - 300 EXC SIX DAYS (2003)
Ktm - 300 EXC SIX DAYS (2004)
Ktm - 300 EXC SIX DAYS (2005)
Ktm - 300 EXC SIX DAYS (2006)
Ktm - 300 EXC SIX DAYS (2007)
Ktm - 300 EXC SIX DAYS (2008)
Ktm - 300 EXC SIX DAYS (2009)
Ktm - 300 EXC SIX DAYS (2010)
Ktm - 300 EXC SIX DAYS (2011)
Ktm - 300 EXC SIX DAYS (2012)
Ktm - 300 EXC SIX DAYS (2014)
Ktm - 300 EXC SIX DAYS (2013)
Ktm - 300 EXC SIX DAYS (2015)
Ktm - 300 EXC SIX DAYS (2016)
Ktm - 380 EXC (1998)
Ktm - 380 EXC (1999)
Ktm - 380 EXC (2000)
Ktm - 380 EXC (2001)
Ktm - 380 SX (1999)
Ktm - 380 SX (2000)
Ktm - 380 SX (2001)
Ktm - 380 SX (2002)
Husqvarna - TC 85 BIG WHEELS 19/16 (2014)
Husqvarna - TC 85 BIG WHEELS 19/16 (2015)
Husqvarna - TC 85 BIG WHEELS 19/16 (2016)
Husqvarna - TC 85 BIG WHEELS 19/16 (2017)
Husqvarna - TC 85 STD WHEELS 17/14 (2014)
Husqvarna - TC 85 STD WHEELS 17/14 (2015)
Husqvarna - TC 85 STD WHEELS 17/14 (2016)
Husqvarna - TC 85 STD WHEELS 17/14 (2017)
Husqvarna - TC 125 (2014)
Husqvarna - TC 125 (2015)
Husqvarna - TC 125 (2016)
Husqvarna - TC 250 (2014)
Husqvarna - TC 250 (2015)
Husqvarna - TC 250 (2016)
Husqvarna - TE 300 (2014)
Husqvarna - TE 300 (2015)
Husqvarna - TE 300 (2016)
Husqvarna - TE 300 SPECIAL EDITION (2014)
Beta - RR 125 2T (2020)
Beta - RR 125 2T (2021)
Beta - RR 125 2T (2022)
Beta - RR 125 2T (2023)
Beta - RR 125 2T RACING (2020)
Beta - RR 125 2T RACING (2021)
Beta - RR 200 2T ENDURO (2019)
Beta - RR 300 2T ENDURO (2013)
Beta - RR 300 2T ENDURO (2014)
Beta - RR 300 2T ENDURO (2015)
Beta - RR 300 2T ENDURO (2016)
Beta - RR 300 2T ENDURO (2017)
Beta - RR 300 2T ENDURO (2018)
Beta - RR 300 2T ENDURO (2019)
Beta - RR 300 2T ENDURO RACING (2013)
Beta - RR 300 2T ENDURO RACING (2014)
Beta - RR 300 2T ENDURO RACING (2015)
Beta - RR 300 2T ENDURO RACING (2016)
Beta - RR 300 2T ENDURO RACING (2017)
Beta - RR 300 2T ENDURO RACING (2018)
Beta - RR 300 2T ENDURO RACING (2019)
Beta - XTRAINER 250 2T (2018)
Beta - XTRAINER 250 2T (2019)
Beta - XTRAINER 250 2T (2020)
Beta - XTRAINER 250 2T (2021)
Beta - XTRAINER 250 2T (2022)
Beta - RR 250 2T (2020)
Beta - RR 250 2T (2021)
Beta - RR 250 2T (2022)
Beta - RR 250 2T (2023)
Beta - RR 250 2T RACING (2020)
Beta - RR 250 2T RACING (2021)
Beta - RR 250 2T RACING (2022)
Beta - RR 250 2T RACING (2023)
Beta - RR 250 2T (2019)
Beta - RR 125 2T (2024)
Beta - RR 250 2T (2024)
