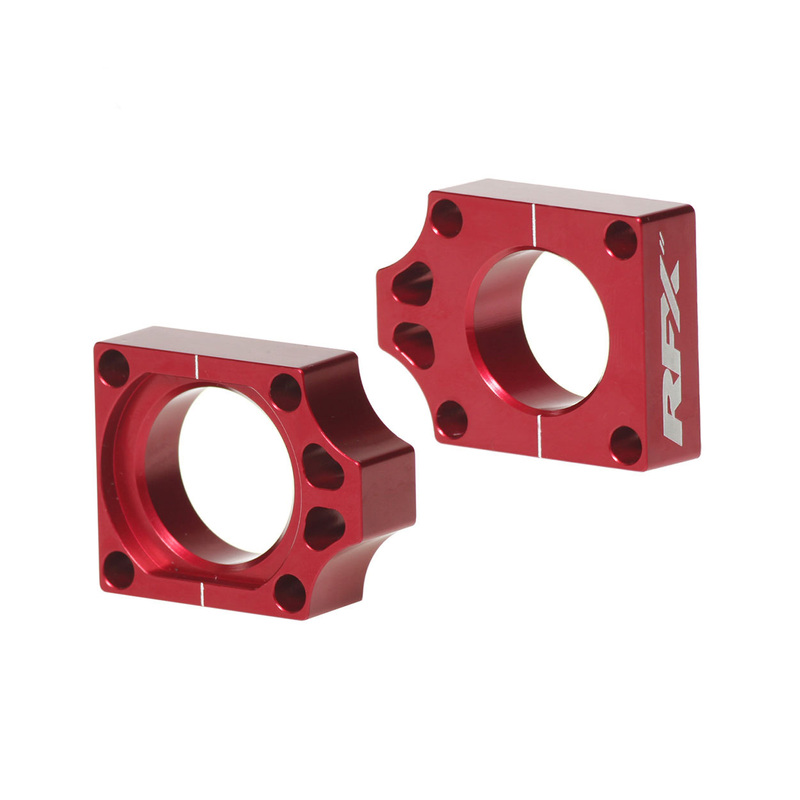

RFX Pro Series Axle Blocks are designed to speed up & improve wheel changes with easy fitting and more precise alignment.
CNC manufactured from 7075 aerospace grade aluminium.
Pro Series Axle Blocks Features:-
- Axle holder holds one side so that is can be tighted with one spanner.
- Laser etched RFX logo.
- CNC 7075 Aerospace aluminium.
- CAD designed profile for lightness.
- Tighter tolerances for improved fit.
- Colour anodised for that factory bike look.
Fitting Instructions
- Start with bike on a stand with the rear wheel raised from the ground.
- Undo rear axle nut and remove spindle.
- Lift chain of sprockets & remove rear wheel.
- Remove old axle blocks.
- Remove old axle block bolts.
- Remove the spindle from the axle block (KTM Only) to do this may require some heat and a vice, be careful not to damage the spindle.
- Re-fit the spindle to the new axle block (KTM Only) make sur to use red threadlock when doing this.
- Clean around the swing arm making sure clean and free of debris.
- Take the new RFX Axle Blocks and place on swing arm ensuring alignment and bolts are in position.
- Clean spindle and axle nut.
- Apply waterproof grease to spindle and wheel spacers.
- Lift the wheel into position and re-apply the chain.
- Insert Spindle all the way through and re-attach the axle nut, do not fully tighten nut.
- Align the wheel square using the axle blocks and adjust to set the chain to the correct tension (Check owner’s manual for correct tension)
- Tighten axle nut to correct torque as per owner’s manual.
