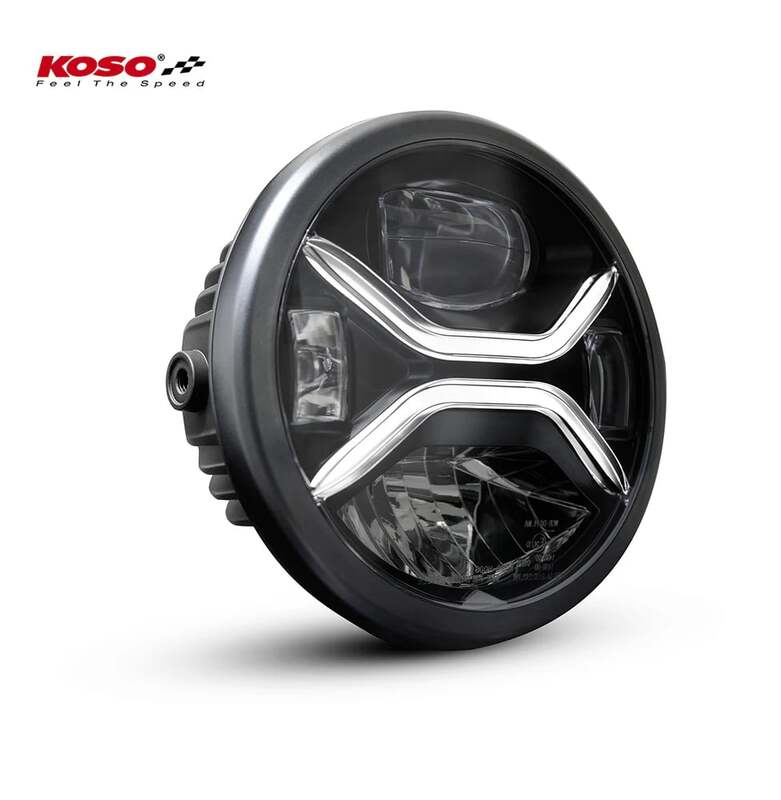

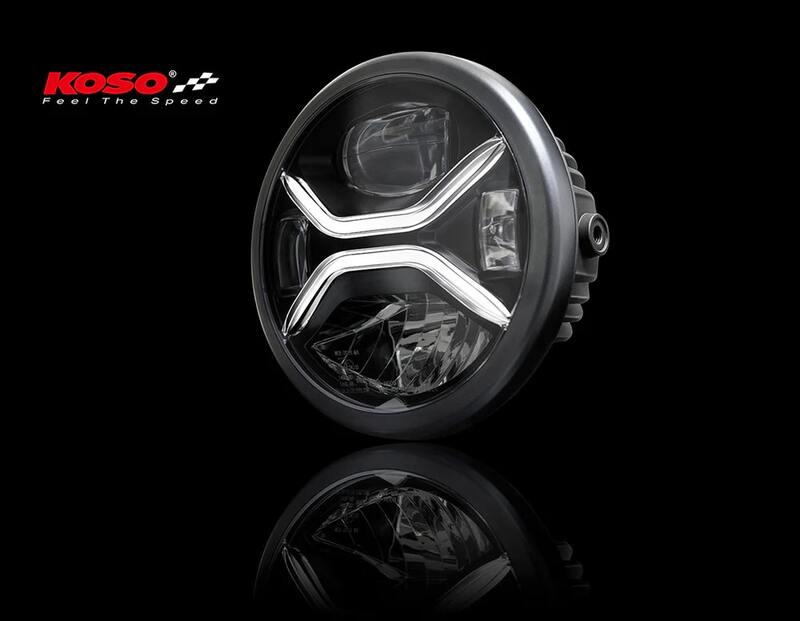

KOSO LED headlight XENITH LED headlight with parking light, black

We present the latest addition to the KOSO headlight range: the X-ZENITH LED headlight. This new universal headlight is perfect for any motorcycle. It features a lightweight, durable die-cast housing and is also DOT and SAE certified. The Zenith's LED light design not only gives your motorcycle a great look, but its powerful LED lights also allow you to ride safely all day and all night.

Dimensions:
Housing diameter: 181 mm
Depth: 96 mm

Mounting: side

Connections:
3-pin combination plug
yellow = low beam (+)
blue = high beam (+)
black = ground (-)
Extra cable:
white = position light (+)
black = ground (-)

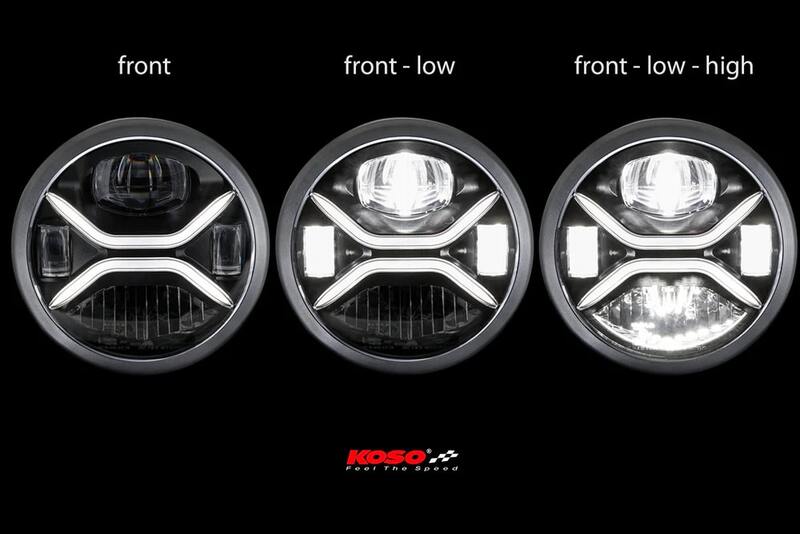

Daytime running lights:
Light source: 4x LED, 12V, 2.7W
Colour of light emitted: White
Colour of outer lens: Clear
Colour of inner lens: White

High beam:
Light source: 1 x LED module (10 out of 10 LEDs), 12V, 20.2W
Colour of light emitted: White
Colour of outer lens: Clear
Colour of inner lens: Clear
Brightness: 1889 lumens

Low beam:
Light source: 1 x LED module (8 out of 10 LEDs), 12V, 24.9W
Colour of emitted light: White
Colour of outer lens: Clear
Colour of inner lens: Clear
Brightness: 1557.7 lumens

Scope of delivery: 1 piece
