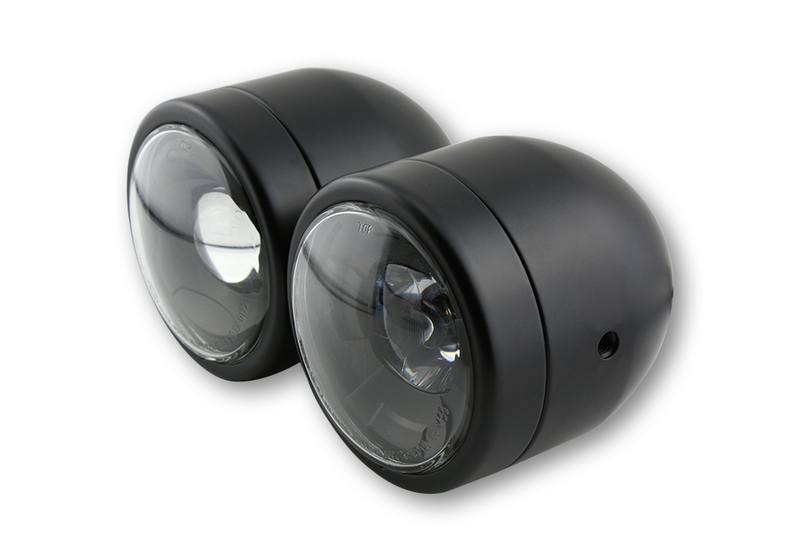

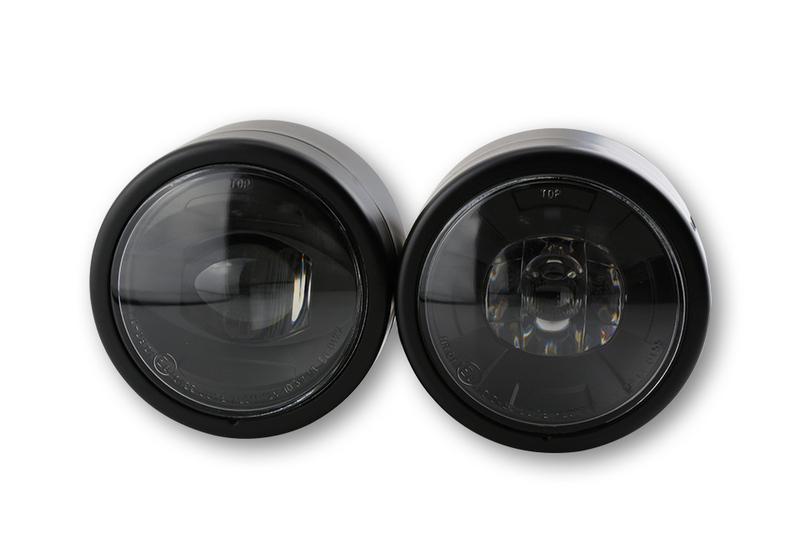

HIGHSIDER smart LED headlight TWIN with low beam and high beam, the LED headlight set in a sturdy metal housing for side mounting gives your bike the special look. The 4 inch low beam and driving lamp is universally usable for all motorcycle conversions.
Available in chrome-plated and black version, E-tested.
It is necessary to connect a parking light separately, as this is not integrated in any of the headlights.

Dimensions:
Height: 107 mm
Width: 215 mm
Depth: 130 mm
Depth from thread: 60 mm
Diameter Inserts: 91 mm
Cable length: approx. 600 mm

housing:
material: metal
fixing: lateral

connections:
White = Low beam (+)
Blue = High beam (+)
Green = Ground (-)
With wiring harness and 3-pin plug for H4

Scope of supply: 1 piece

Note:
Without parking light, please order separately if necessary.

Daytime running lights/parking light combinations:
Article no. 222-503 HIGHSIDER smart LED daytime running light with parking light function, black with universal holder
article no. 222-511 HIGHSIDER smart LED daytime running light PENTA with 5 LEDs, parking light function

parking light:
article no. 223-323 HIGHSIDER smart Universal TRI-LED parking light with holder and self-adhesive foil
article no. 223-324 HIGHSIDER smart MINI LED parking light, round, lens diameter 14.8 mm
article no. 223-325 HIGHSIDER smart Universal LED parking light, lens diameter 23 mm
article no. 223-330 HIGHSIDER smart LED parking light, round, diameter 24.7 mm, with universal holder
article no. 223-330 223-331 HIGHSIDER smart LED parking light, round, diameter 24.7 mm, with M12 screw
article no. 223-358 HIGHSIDER smart LED parking light MICRO PIN for installation, tinted glass
article no. 223-359 HIGHSIDER smart LED parking light MODUL 2 with 2 SMDs, oval, tinted glass, for installation
