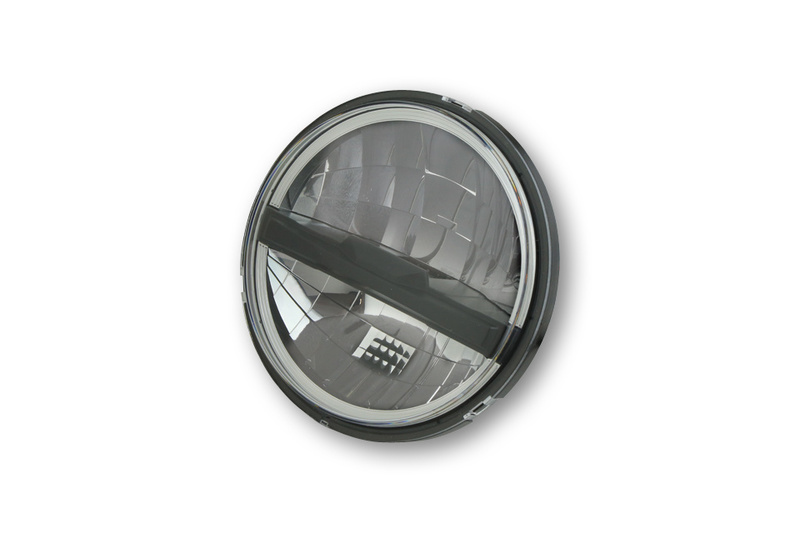

HIGHSIDER pro LED main headlight insert Type 5, E-approved.

This round, chrome-plated reflector with black bezel and clear glass has a high beam, low beam and parking light function.

Also suitable as inserts in exchange for e.g. the following vehicles:
Victory Highball
Victory Gunner
Indian Scout Bobber
Indian Scout Sixty

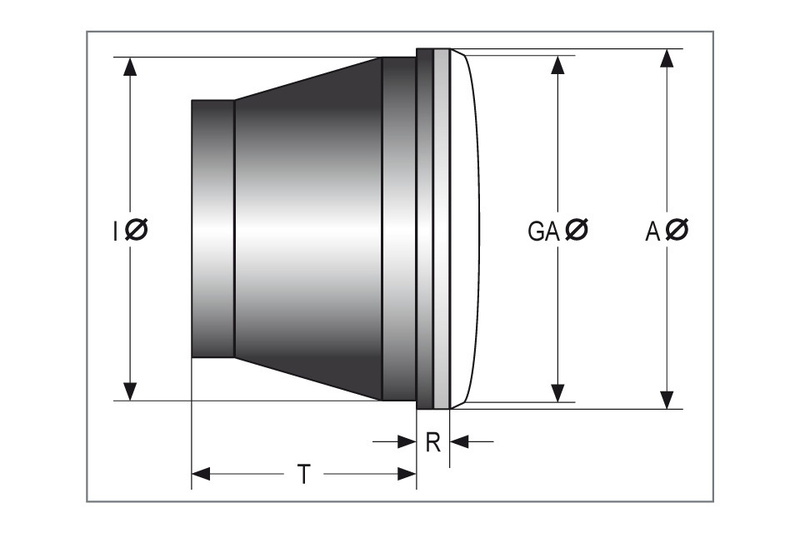

Dimensions :
Diameter A = 145 mm
Diameter GA = 133 mm
Diameter I = 129 mm
T = 60 mm
R = 10 mm
Cable length: 400 mm

Connectors:
Power Consumption = 3 Pin Plug
Black Cable = Ground (-)
Red Cable = Low Beam (+)
White Cable = High Beam (+)
Brown Cable = Parking (+)

Supplied Contents: 1 Piece

Note: The enclosed 3-pole standard plug must be mounted after reflector installation.
