DENALI Universal Kit Dialdim D7 consisting of:

• DENALI DialDim Lighting Controller (1x)

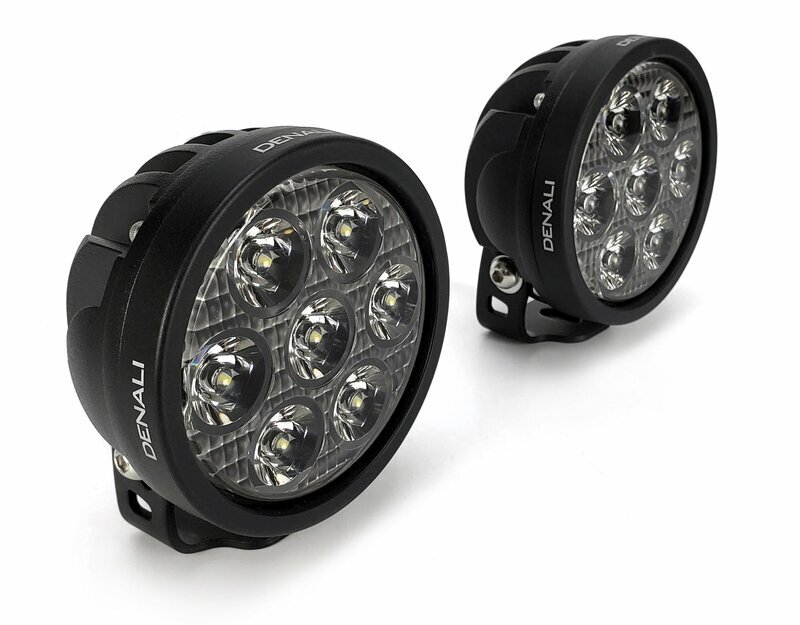

• DENALI D7 LED Additional Lighting 10W - By Unit (2x)

At over 7500 lumens, the DENALI D7 light kit is one of the brightest LED lights under 11,5cm period. A pair of D7s feature 7 high-intensity 10 watt LEDs that are focused through a proprietary single piece optic that was specifically engineered to create a full bodied spot beam that can reach over 365m at one lux. The robust heatsink and Active Thermal Management™ work together to keep this high powered lamp cool enough to maintain maximum light output when you need it most.

Features :

• High-Intensity Series Cree LEDs outputting 7665 lumens per kit DrySeal™ Submersible Waterproof light and switch housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

Specifications :

• Power Draw: 5Amps
• Beam Distance: 365m
• Beam Width: 38m
• Raw Lumens: 7665
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes

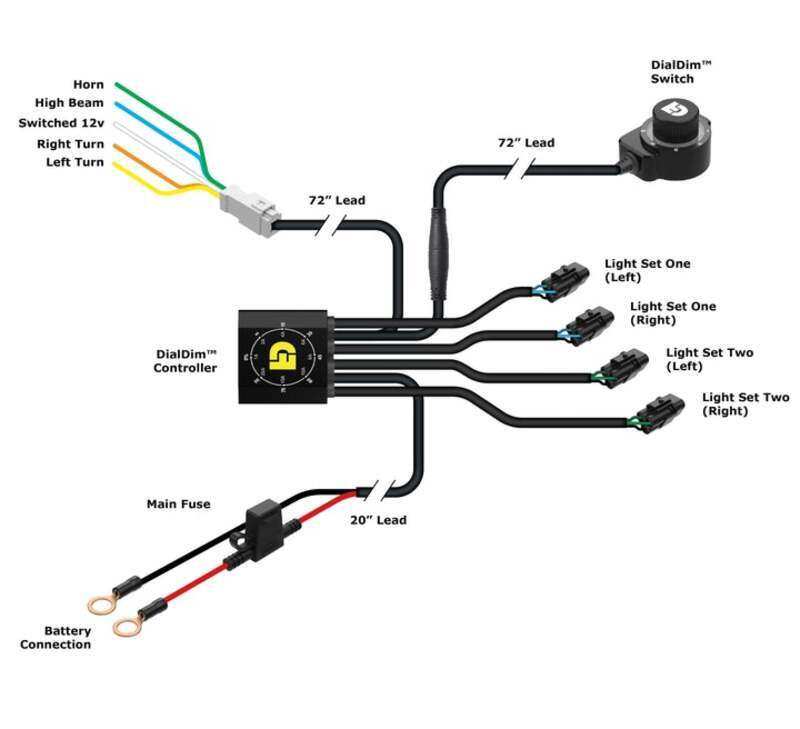

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync
Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.
