DENALI Dialdim Kit D2 consisting of:

• DENALI DialDim Lighting Controller (1x)
• DENALI Plug-&-Play DialDim™ Wiring Adapter Tenere (1x)
• DENALI D2 LED Additional Lighting 10W - By Unit (2x)

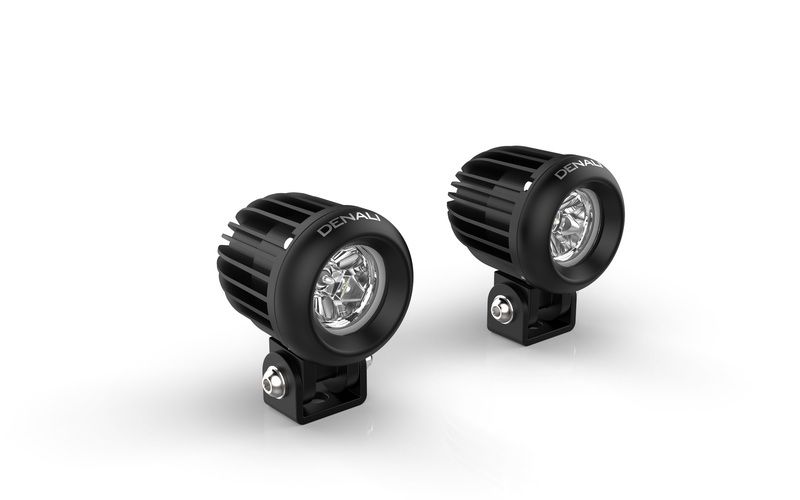

The DENALI D2 2.0 LED TriOptic™ LED light kit with DataDim technology produces a remarkable amount of light in a very compact package that is perfect for all styles of riding and types of motorcycles. With a powerful 10-watt Cree LED, the DENALI D2 casts a powerful beam 160m down the road.

Housed in compact aluminum pods, the D2 LED lights are perhaps the most versatile design available; powerful enough to be your “primary” driving light yet small and light enough to comfortably mount on a fender. The DENALI D2s feature durable black powder-coated finishes and special cooling fins to make sure the LED itself runs cool and bright. New for the DENALI 2.0 series is a special Impact PC™ corrosion proof bezel that ensures your lights will continue to look great even after repeated stone and debris impacts.

Also new with the DENALI 2.0 generation of lighting is the industry-leading TriOptic™ lens system. Each lamp comes with both spot (installed) and flood (supplied) lenses, nothing else to buy. The spot lens produces the greatest beam distance, while the flood lens produces a broader spread of light closer to the motorcycle, filling the road edge and shoulders. To get the best of both worlds, use a spot lens on one light and a flood lens on the other light for distance illumination and a useful spread of light at close range. No matter which lens you choose, the D2 2.0 light kit lets you see the road (or lack thereof) and be seen by other traffic around you. It’s that simple: See further, be seen better, with DENALI!

Specifications:

• LEDs 10 Watt Cree XPL HI (per lamp)
• Power Draw: 1.6 amps (total)
• Beam Distance (spot): 160m
• Beam Width (spot): 22m
• Raw Lumens: 2190
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12v
• Pod Size : Ø55x60mm

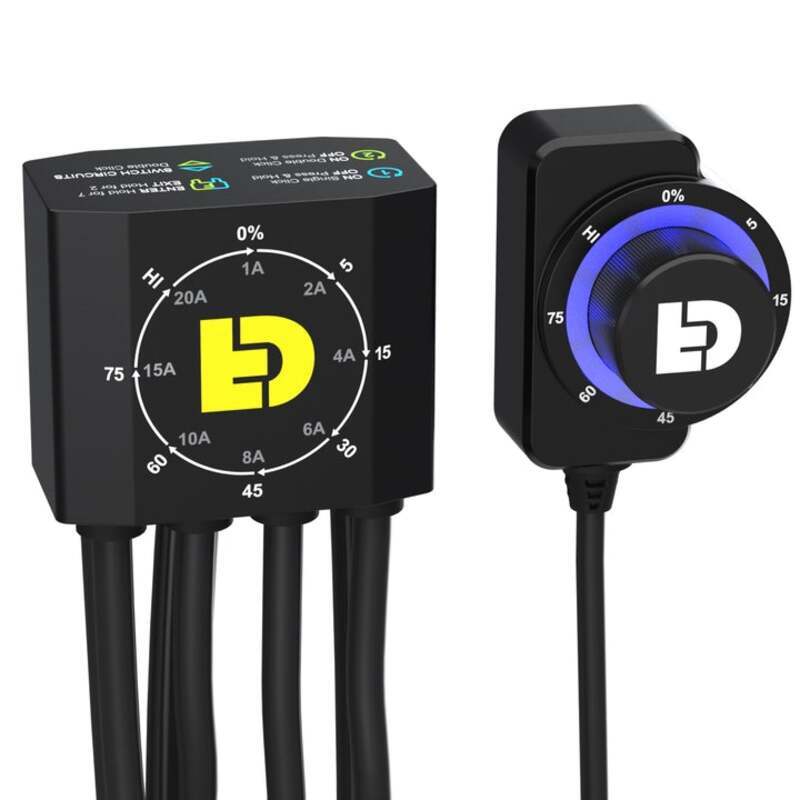

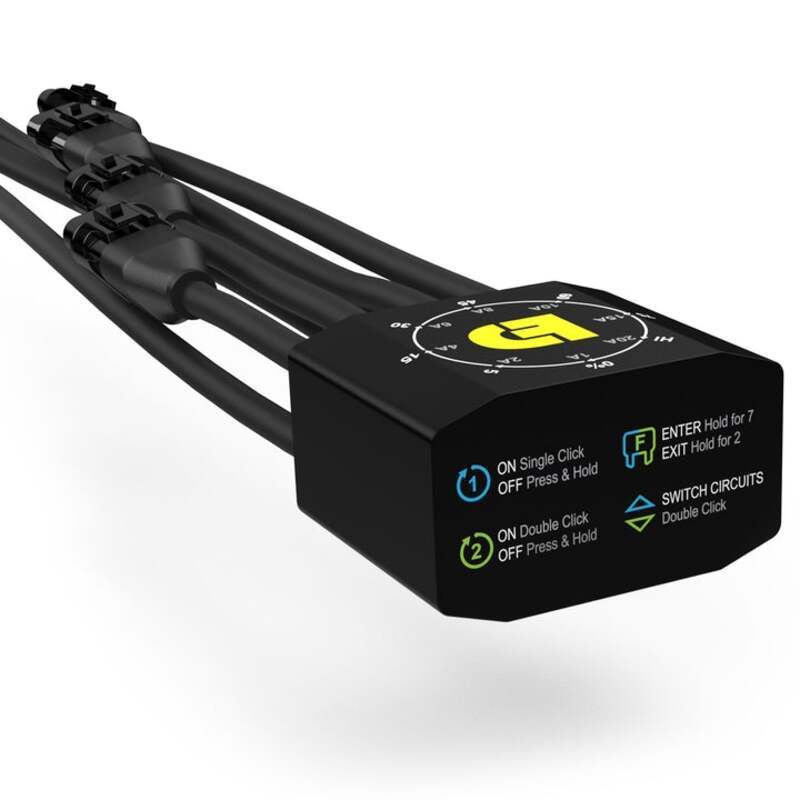

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync
Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

This wiring adapter enables plug-&-play connection between our standard DialDim Lighting Controller and the Yamaha Tenere 700. To install, simply connect the white connector to our DialDim Controller and the remaining connectors in line at the Tenere 700 headlight, horn, and turn signal connectors.
