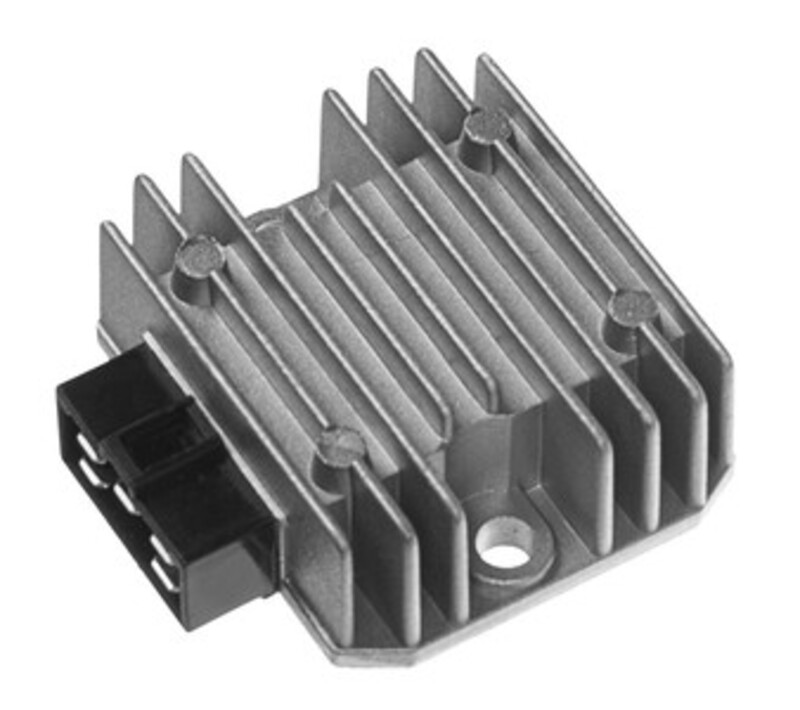

TECNI BY DZE REGULATOR N-MAX 4B4-H1960 2388
TECNIUM by DZE Regulator| Product | TECNI BY DZE REGULATOR N-MAX 4B4-H1960 |
| Brand | Tecnium |
| Categoy | Elect. ignition |
| Stock number | 96230 (1148650) |
| Price | € 54,50 |
| Stock | 13 |
Add to cart
English:
Technical Information:
-
Voltage (voltage): 12 [V]
-
Current (current): 20 [A]
-
Input Type (input type): SINGLE-PHASE
-
Technology (technology): SCR
-
Output Type (output type): DC
-
Height (height): 26 [mm]
-
Width (width): 59 [mm]
-
Length (length): 69 [mm]
-
Pitch (pitch): 55 [mm]
-
With Sensor (with sensor): NO
Applications:
Yamaha:
-
-, Cod. OEM: 4B4-H1960-01
-
GPD NMAX - 125, years: 2015-2017, Cod. OEM: 4B4-H1960-01
-
GPD NMAX - 150, year: 2017, Cod. OEM: 4B4-H1960-01
-
XTZ Lander - 250, since 2006, Cod. OEM: 4B4-H1960-00
Part compatible with
Yamaha - N-MAX 125 ABS (SE93) (2015)Yamaha - N-MAX 125 ABS (SE93) (2016)
Yamaha - N-MAX 125 ABS (SEC7) (2017)
Yamaha - N-MAX 125 ABS (SEC7) (2018)
Yamaha - N-MAX 125 ABS (SEC7) (2019)
Yamaha - N-MAX 155 (2017)
Yamaha - N-MAX 155 (2018)
Yamaha - N-MAX 155 (2019)
Yamaha - D'ELIGHT 125 (SED5) (2017)
Yamaha - D'ELIGHT 125 (SED5) (2018)
Yamaha - D'ELIGHT 125 (SED5) (2019)
Yamaha - TRICITY 125 (2017)
Yamaha - TRICITY 125 (2018)
Yamaha - TRICITY 125 ABS (2017)
Yamaha - TRICITY 125 ABS (2018)
Yamaha - TRICITY 125 ABS (2019)
Yamaha - TRICITY 300 (2020)
Yamaha - TRICITY 125 ABS (2020)
Yamaha - TRICITY 125 ABS (2021)
Yamaha - TRICITY 300 (2021)
Yamaha - X-MAX 300 (2017)
Yamaha - X-MAX 300 (2018)
Yamaha - X-MAX 300 (2019)
Yamaha - X-MAX 300 IRON MAX (2019)
Yamaha - X-MAX 300 IRON MAX (2018)
Yamaha - X-MAX 300 EURO 4 (2017)
Yamaha - X-MAX 300 EURO 4 (2018)
Yamaha - X-MAX 300 EURO 4 (2019)
Yamaha - TRICITY 300 (2022)
Yamaha - TRICITY 300 (2023)
Yamaha - TRICITY 300 (2024)
Yamaha - TRICITY 300 (2025)
Yamaha - X-MAX 300 EURO 4 (2020)
Yamaha - X-MAX TECH MAX 300 EURO 5 (2020)
Yamaha - X-MAX 300 EURO 4 (2021)
Yamaha - X-MAX TECH MAX 300 EURO 5 (2021)
Yamaha - X-MAX 300 EURO 4 (2022)
Yamaha - X-MAX TECH MAX 300 EURO 5 (2022)
Yamaha - X-MAX 300 EURO 4 (2023)
Yamaha - X-MAX TECH MAX 300 EURO 5 (2023)
Yamaha - X-MAX 300 EURO 4 (2024)
Yamaha - X-MAX TECH MAX 300 EURO 5 (2024)
Yamaha - X-MAX 300 EURO 5 (2021)
Yamaha - X-MAX 300 EURO 5 (2022)
Yamaha - X-MAX 300 EURO 5 (2023)
Yamaha - X-MAX 300 EURO 5 (2024)
Yamaha - X-MAX 300 EURO 5 (2025)
Yamaha - X-MAX TECH MAX 300 EURO 5 (2025)
Yamaha - X-MAX TECH MAX+ 300 EURO5 (2025)
Honda - NX 125 (JD12) (1989)
Honda - NX 125 (JD12) (1990)
Honda - NX 125 (JD12) (1991)
Honda - NX 125 (JD12) (1992)
Honda - NX 125 (JD12) (1993)
Honda - NX 125 (JD12) (1994)
Honda - NX 125 (JD12) (1995)
Honda - NX 125 (JD12) (1996)
Honda - NX 125 (JD12) (1997)
