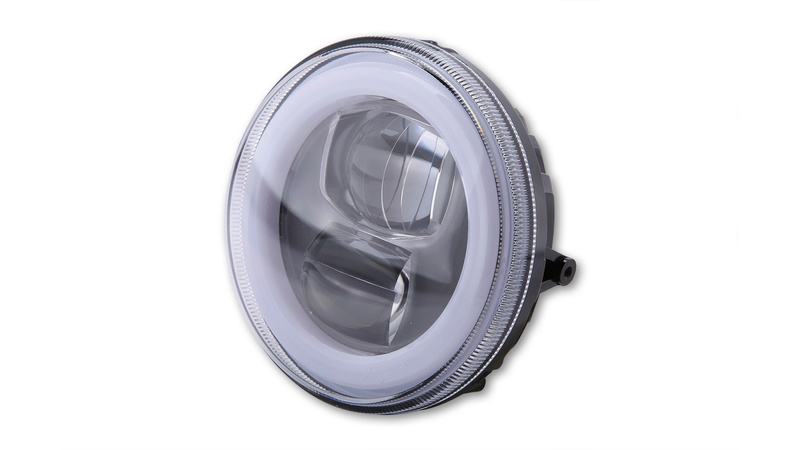

HIGHSIDER pro LED headlamp insert type 9, round, 120 mm, with parking light ring

Distance, dipped, and parking light function.
Asymmetrical use

Dimensions:
Legend see picture in the catalog at inserts.
Diameter A = 120 mm
Diameter GA = 113mm
Diameter I = 114 mm
T = 50 mm
R = 15 mm
Cable length: 400 mm
Weight: 0.430 kg

Connections:
(3 pin plug)
white = high beam (+)
red = dipped beam (+)
black = mass (-)
Position light (round plug) = green (+)

Hints:
View on plug contacts:
High beam (white) = right
Low beam (red) = above
Mass (black) = left
