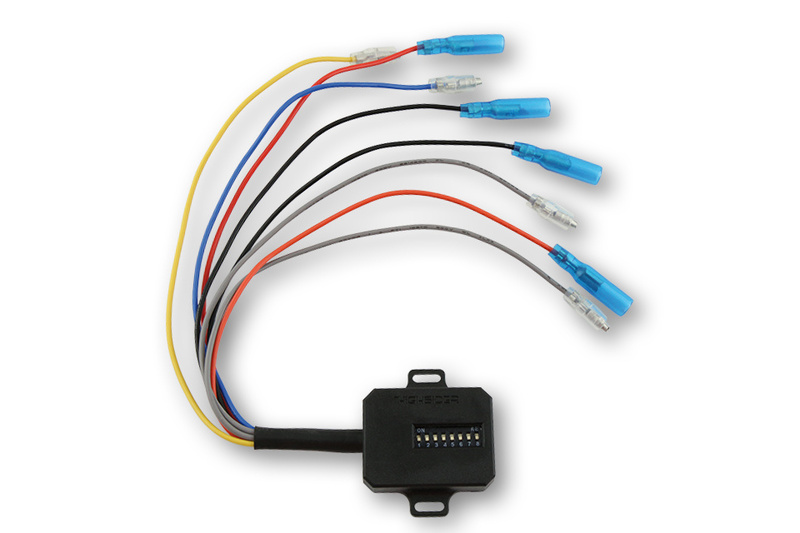

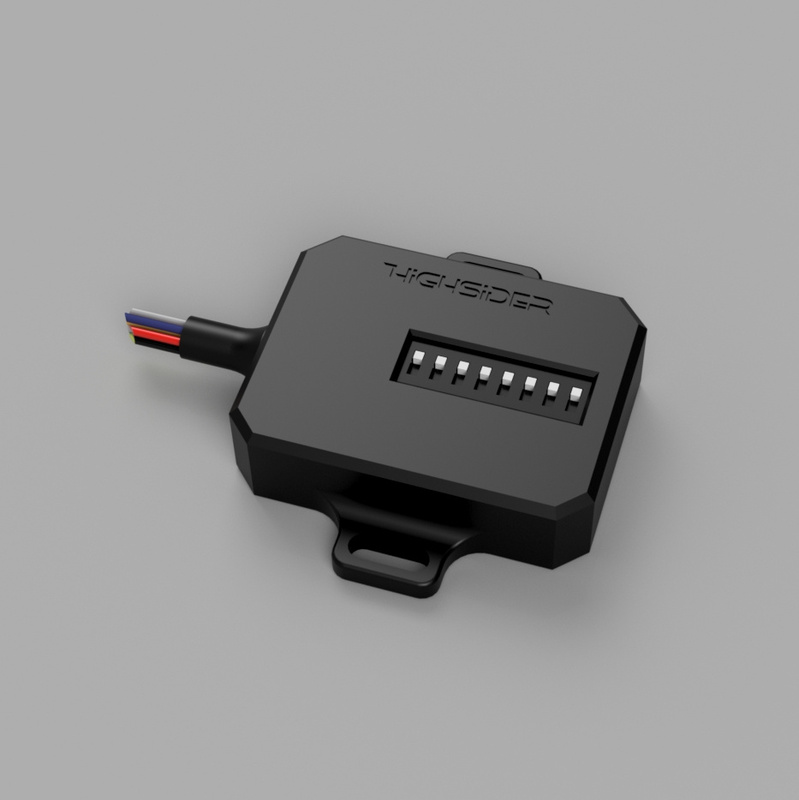

HIGHSIDER smart CAN-BUS resistor CBW1 with DIP-switch.

Our newly developed HIGHSIDER smart CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system.

The CBW1 resistor provides a required electrical load for your vehicle, which, if the dip switches are set correctly, will result in no flashing of the accessory flashers in the cockpit.

In addition, a reliability is given. This means:
If the accessory indicators fail due to an electronic fault, an error message is immediately displayed in the cockpit.

Up to 2 channels can be operated, such as turn signals at the rear left and turn signals at the rear right.

If 2 pairs of indicators need to be changed,also 2 CBW1 needed to be used.

Which requirements should be met in order to use the CBW1 on the motorbike:

The motorbike was originally produced with LED indicators or the motorbike has a CAN-BUS System

If these requirements are not met, the CBW1 unit will not function (!) In this case, we recommend the following resistances:

For indicators with 21 Watt:
6,8 Ohm partnumber 1108546002 or 10 Ohm partnumber 1108546004

For indicators with 10 Watt:
27 Ohm partnumber 1107562

The following resistance values ??can be set on the CBW1:

• 150 ohms
• 170 ohms
• 240 ohms
• 300 ohms
• 400 ohms
• 600 ohms
• 1200 ohms

Dimensions:
Height = 11mm
Width = 31mm (without straps)
Width = 46mm (with tabs)
Length = 40mm

Cable length = 200mm with pins

Connections:
Yellow = input channel 1 (+)
Orange = output channel 1 (+)
Blue = input channel 2 (+)
Red = output channel 2 (+)
Gray = input mass (-)
Black = output ground (-)

Hints:
– Up to 2 channels can be operated.
– The connection is explained precisely in the mounting instructions!
